Proof of Concept for Dapp-LCDP: Developing a Starcoin Demo App

About Dapp-LCDP

See: https://www.dddappp.org

The Demo: a demo domain name system

The purpose of the demo

In the grand scheme of things, we are actually trying to explore a development model that would significantly lower the barrier for traditional application developers to enter the Dapp space. The ideal “very low barrier” would be something like this: developers would only need to build domain models and write(pure) business logic codes. These codes should be able to migrate between different technical infrastructures such as L1 blockchain/L2 blockchain, on-chain/off-chain, centralized database/decentralized ledgers, etc. without requiring developers to manually modify them.

This is obviously a very challenging goal. Because different blockchains have different characteristics, can our low-code platform be designed to effectively meet the challenges posed by the diversity of technical infrastructures? We certainly have great confidence in this, and we will demonstrate this by developing a demo domain system.

We know that Move(Move VM) did not have a data structure like Solidity(EVM)’s mapping before; even if Move will support table(mapping) next, it should not be abused.

The abuse of mapping can cause the so-called “blockchain state explosion” problem. It is not a recommended practice to store large amounts of state data in Mapping on the L1 chain; they should be stored off-chain(outside the L1 chain), but at the same time they need to be verifiable and usable on-chain.

So, building a domain name system on a Move chain without using table(mapping) is a development task of considerable complexity; next we can see the DDD and DSL-based development pattern(a low-code platform) can greatly reduce the burden of developers to complete this task.

How to prove it

In the first step(already done), we manually write the codes for the implementation of this demo application; which should be decoupled into three parts as follows.

  1. libraries that can be reused and are independent of the business logic of the application domain(the domain name system).
  2. boilerplate codes that can be generated from the models(described by the DSL).
  3. pure business logic codes. It should be noted that the business logic of this demo is written in Move and executed on the Move blockchain(Starcoin L1), but there is potential to evolve a more complex implementation based on this.

In the second step(to be completed), we will create code generation tools to templatize the codes in part 2 above. We can then remove the part 2 codes described above, regenerate these codes from the models(plus the code templates), and the application should compile and run properly.

It should be noted that although we have not yet completed the second step, any experienced developer can conclude with certainty by reading the source codes we completed in the first step: the real business logic codes(which do need to be written by developers) are very limited, and 90% of the source codes are boilerplate codes that can be generated from the models.

Source code of the demo

The source code for the demo is available here:

Features of the demo domain name system

To make the proof of concept in the limited time available, we have dreamed up some simple but “enough to make the point” feature requirements for the domain name system as follows.

Architecture of the demo system

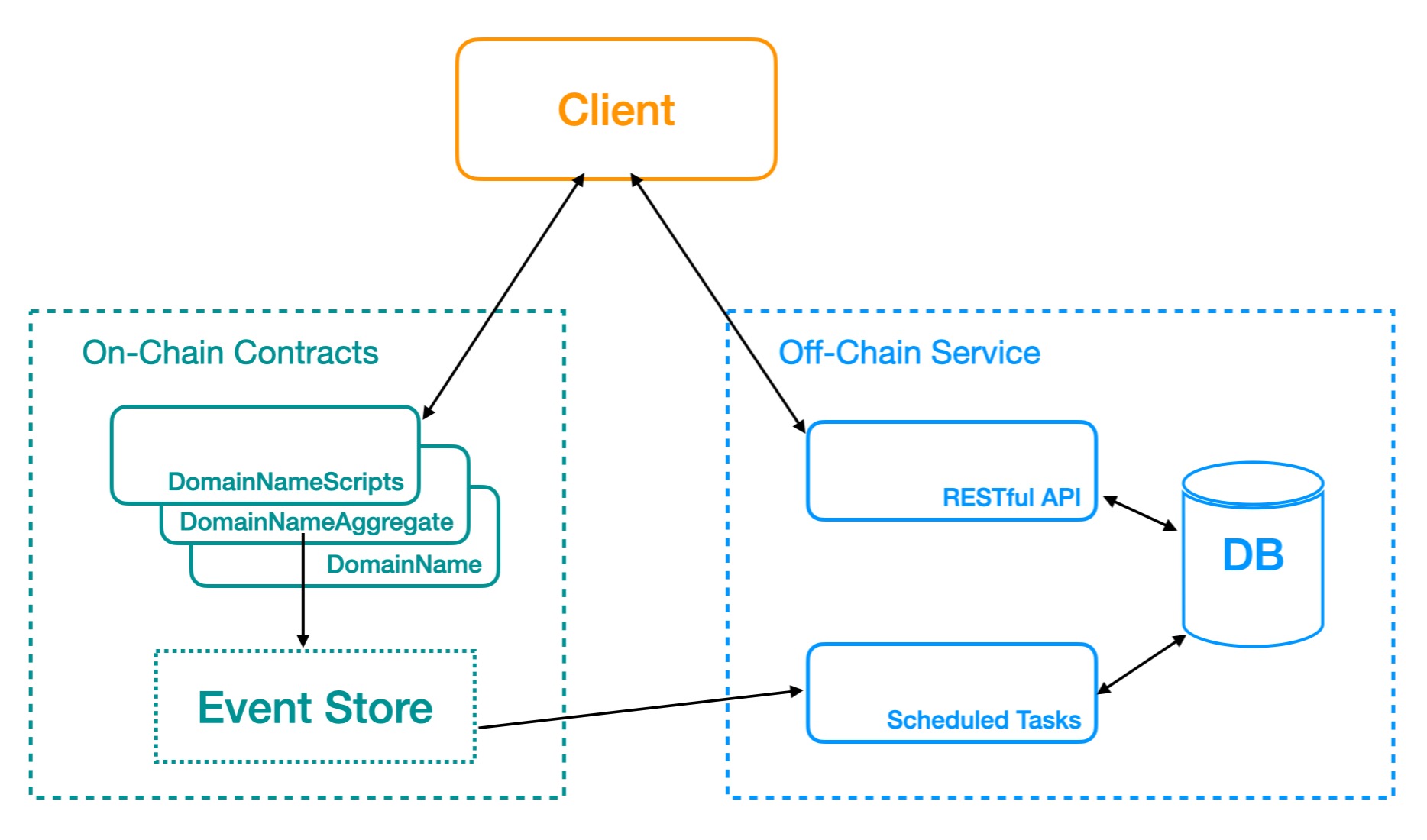

The demo domain system consists of three parts.

Demo Domain Name System Architecture

It is to be noted that the implementation codes of the demo actually use the StateFullTransaction pattern mentioned in the Starcoin Layer 2/Layered network solution. The DDD concept of “aggregation” is a very powerful thought weapon to determine the boundary of the state involved in a transaction.

Jobs that need to be done manually

First we need the developers to describe the domain model of the demo system using DSL(DDDML).

The domain model obtained in this step may look like the following.

aggregates:
  DomainName:
    id:
      name: DomainNameId
      type: DomainNameId
    properties:
      ExpirationDate:
        type: u64
      Owner:
        type: AccountAddress
    methods:
      Register:
        parameters:
          Account:
            type: signer
            eventPropertyName: Owner
          RegistrationPeriod:
            type: u64
        eventName: Registered
        isCreationCommand: true
      Renew:
        parameters:
          Account:
            type: signer
          RenewPeriod:
            type: u64
        eventName: Renewed

valueObjects:
  DomainNameId:
    properties:
      TopLevelDomain: # TLD
        type: string
      SecondLevelDomain: # SLD
        type: string

The developers then need to write the business logic codes of the on-chain contracts.

The directory and file structure of the codes of the on-chain contracts is as follows.

./move-contracts/src/modules
├── domain-name # Codes of domain (domain name system)
│   ├── DomainName.move # Data models, DomainNameId, DomainNameState, etc.
│   ├── DomainNameAggregate.move # Glue codes for DomainName aggregation
│   ├── DomainNameRegisterLogic.move # Business logic of domain registration
│   ├── DomainNameRenewLogic.move # Business logic of domain renewal
│   └── DomainNameScripts.move # Entry functions
└── smt # Sparse Merkle Tree related codes
    ├── SMTHash.move
    ├── SMTProofUtils.move
    ├── SMTProofs.move # Verify "state proof", update the State Root, etc.
    ├── SMTUtils.move
    └── SMTreeHasher.move

A special note here is that only these two files are the “business logic” codes that need to be written manually if a code generation tool is available.

The rest of the codes are libraries that can be reused(codes in the smt directory) or codes that can be generated from the models(described by DSL).

We need the developers to write the business logic(Move codes) for “register a domain name” manually as follows.

address 0x18351d311d32201149a4df2a9fc2db8a {
module DomainNameRegisterLogic {
//…

public fun verify(
    account: &signer,
    _domain_name_id: &DomainName::DomainNameId,
    registration_period: u64,
): (
    address, // Owner
    u64, // RegistrationPeriod
) {
    let amount = Account::withdraw<STC::STC>(account, 1000000);
    Account::deposit(DomainName::genesis_account(), amount);
    let e_owner = Signer::address_of(account);
    let e_registration_period = registration_period;
    (e_owner, e_registration_period)
}

public fun mutate(
    domain_name_id: &DomainName::DomainNameId,
    owner: address,
    registration_period: u64,
): DomainName::DomainNameState {
    let domain_name_state = DomainName::new_domain_name_state(
        domain_name_id,
        Timestamp::now_milliseconds() + registration_period,
        owner,
    );
    domain_name_state
}

The business logic of “renew a domain name” need to be written by the developer manually is roughly as follows.

address 0x18351d311d32201149a4df2a9fc2db8a {
module DomainNameRenewLogic {
//…

public fun verify(
    account: &signer,
    _domain_name_state: &DomainName::DomainNameState,
    renew_period: u64,
): (
    address, // Account
    u64, // RenewPeriod
) {
    let amount = Account::withdraw<STC::STC>(account, 1000000);
    Account::deposit(DomainName::genesis_account(), amount);
    let e_account = Signer::address_of(account);
    let e_renew_period = renew_period;
    (e_account, e_renew_period)
}

public fun mutate(
    domain_name_state: &DomainName::DomainNameState,
    _account: address,
    renew_period: u64,
): DomainName::DomainNameState {
    let updated_domain_name_state = DomainName::new_domain_name_state(
        &DomainName::get_domain_name_state_domain_name_id(domain_name_state),
        DomainName::get_domain_name_state_expiration_date(domain_name_state) + renew_period,
        DomainName::get_domain_name_state_owner(domain_name_state),
    );
    updated_domain_name_state
}

The above is ALL the codes that need to be written manually: one model file, two business logic files.

Jobs that should be done automatically by tools

Codes of off-chain service

The demo off-chain service was written in Go. The directory and file structure of the project is as follows.

./off-chain-service
├── README.md
├── client # Go Client SDK for Domain Name System
│   ├── client.go
│   └── client_test.go # Unit tests
├── contract # Query interfaces of on-chain contracts
│   ├── contract.go
│   └── contract_test.go # Unit tests for the contract package
├── db
│   ├── bcs.go # BCS serialization/deserialization codes of data models
│   ├── db.go # Database constants and interface
│   ├── db_test.go # Unit tests for the db package
│   ├── models.go # Data models, DomainNameId, DomainNameEvent, etc.
│   ├── mysqldb.go # MySQL Implementation of Data Access Layer
│   └── smt_test.go # Unit tests on SMT codes
├── events
│   ├── events_test.go # Event unit tests
│   ├── lib.go # Event structs and their BCS serialization/deserialization codes
│   └── libext.go # Some extensions to the event codes generated by tool
├── go.mod
├── go.sum
├── handlers.go # Handlers implementing RESTful API, dependent on starcoinmanager.go
├── main.go # Program entry of off-chain service
├── manager
│   ├── starcoinmanager.go # Pulling on-chain events, updating off-chain states, monitoring and handling chain re-organization, etc.
│   └── starcoinmanager_test.go # Unit tests
├── serde-format
│   └── events.yaml # YAML doc. describing the format of the events in the chain, used by the SerdeGen tool to generate code
├── tools # Some tool code
│   ├── restclient.go # RESTful client codes
│   ├── starcoinutil.go # Some wrappers and extensions to the Starcoin Go SDK
│   └── util.go # Other tools codes
├── transactions # Codes submitting transactions(that change the on-chain state)
│   ├── lib.go # Encoding methods for on-chain transactions
│   ├── transactions_test.go # Unit tests
│   └── util.go # Some tools for on-chain transactions
└── vo
    └── vo.go # Types(View Objects) of parameters and returns of RESTful API

Client SDKs, front-end applications and more

There is no doubt that we can create automation tools to generate Client SDKs for various languages from the DDD domain models, including Client SDK for Java, Client SDK for JavaScript, Client SDK for Go, Client SDK for any programming language you can name.

Tools can even generate front-end applications with user interfaces directly from the domain models, including Web front-end applications(we really did this in the Web 2.0 era), mobile apps, command-line client applications, and more. Maybe you think this is too promising, well, at least you can believe that there is no problem scaffolding codes for front-end applications.

Number of lines of codes in the demo

We have done a rough count of the lines of codes for this demo system as follows.

github.com/AlDanial/cloc v 1.92  T=0.08 s (604.0 files/s, 97263.5 lines/s)
-------------------------------------------------------------------------------
Language                     files          blank        comment           code
-------------------------------------------------------------------------------
Go                              24            459            390           4374
Move                            12            255            225           1323
JSON                             3              0              0            509
Markdown                         2             58              0            211
XML                              5              0              0            118
YAML                             2              5              0             66
TOML                             2             24              0             34
-------------------------------------------------------------------------------
SUM:                            50            801            615           6635
-------------------------------------------------------------------------------

Conclusion from the Demo

With this demo, we can draw the following rough conclusions.

It is important to note that the demo actually does not fully show the power of low-code development. We can use the expression capability of DSL(DDDML) to build quite complex domain models: value objects(non-fundamental types) embedded in value objects; aggregations containing multiple(multi-level) entities, etc. In the development of real “traditional” applications, we have used DSL to build much more complex aggregate models than the demo.
